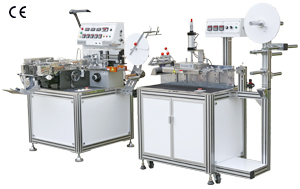

When the Longitudinal Fold is not in use, the Label Cutting Machine can be use as a Cutting with End or Hanging Fold machine.

Changing between different type of folds can be done within minutes by an operator.

The most distinctive feature is the integration between the Longitudinal Fold and the Cutting  machine. Once the Cutting machine stop, the Longitudinal Fold iron will be lifted to prevent the Label from burn mark.

Folding Molds

Cutting Method:

Folding Method:

LONGITUDINAL

1. Hot, Hot Seal, Cold

1. 4-SIDES

2. END

3. CENTRE

Longitudinal 4-SIDES Fold Allowable Size (Unfolded Size)

Narrowest

25mm

Widest

99mm

Shortest

40mm

Longest

160mm

Longitudinal END Fold and Cut Allowable Size (Unfolded Size)

Narrowest

25mm

Widest

99mm

Shortest

10mm

Longest

160mm

Longitudinal CENTRE Fold and Cut Allowable Size (Unfolded Size)

Narrowest

30mm

Widest

150mm

Shortest

10mm

Longest

160mm

Ultrasonic Cutting Allowable Size

Narrowest

10mm

Widest

75mm

Shortest

20mm

Longest

170mm

Label length adjustment is made by the simple turn of a dial and can be fine tuned for any length required.

The use of spindles fixed at both sides means there is no need to worry about inaccuracy caused by vibration or deflection.

Color Sensor Electronic Eye

Specifications (mm):

Dimension:

1450L×900W×1350Hmm & 1300L×1100W×1500Hmm

Horsepower:

1/2 HP

Weight :

620Kg

Full power:

3000W

Power :

220V / 110V AC

Generating Speed:

0-200 / min
