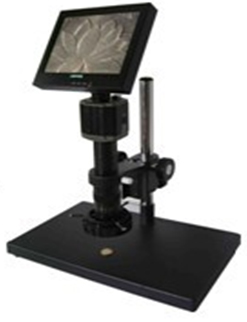

HSTC-10101
, 8-INCH DIGITAL MICROSCOPE |
|
|
Product Function
Description
High-resolution CCD sensor, built-in analog / digital converter,
analog and digital signal directly in the microscope camera
is displayed on the screen, through the corresponding interface
can be on TV and computer can be displayed simultaneously.
Software, video camera, video. Use simple, can reduce the
visual microscope operator fatigue and injury.
| Chinese and English operating
software, high-speed USB2.0 interface, up to 480Mb
/ s. |
| Support for static image capture
(JPG, BMP, GIF) and dynamic AVI image capture |
| Photo size: 720X576, 1440X1152,
video size: 640X480 (25 frames / sec) |
| Software support for the exposure
time, color, brightness, contrast, saturation and
other image enhancement features later. |
| Image colorful, realistic, high-grade
quality. |
| Support for DIRECT SHOW, VIDEO
FOR WINDOW, MSN and all other related applications
WINDOWS. |
| Support for Windows 2000 and XP
operating systems? |
| Product
main parameters |
| Optical microscope
: |
0.7 - 4 .5 X continuous
variable host, 0.5X eyepiece, 1X objective lens (standard)
|
| Display: |
8 inch color monitor, resolution
640 * 480, OSD menu to adjust, with cross-line function
|
| Digital Camera: |
1 / 3 SONY CCD chip, 420TVL (PAL)
|
| Output interface: |
Video BNC Interface, USB2.0 Interface
|
| Magnification : |
12.6 - 81X (can be changed according
to the needs of the corresponding configuration, to
meet customer) |
| Random accessories: |
10W circular fluorescent light
source 1, DC 12V 2A power supply 1, USB cable, CD-ROM.
|
|
|
| |
HSTC-10102
, CONTINUOUS ZOOM STEREO MICROSCOPE |
|
|
|
FZ continuous zoom stereo microscope series
of innovative design, generous, a new optical design, all
the coated film can be formed in the large field of good contrast
of the image plane, and just as good, especially in the peripheral
visual field in image quality more bright and clear, to meet
the modern biological research, semiconductor and other technology
industries such as high-precision requirements, in addition
to high magnification and high resolution advantages, compact
design and long working distance make the products fully meet
the different needs its function become more diversified portfolio
perfect.
| tube: 45 °
tilt, 360 ° rotating binocular head; interpupillary
distance adjustment range 54-75mm; two head tube,
as the degree can be adjusted ± 5 diopter adjustment
range. |
| eyepiece: Use
WF10X high eye point wide field eyepieces, the line
field of view of 20mm, to facilitate the viewer to
wear glasses. |
| objective: 0.
7X-4.5X zoom lens for continuous, to ensure homogeneous
focus of the image plane. |
| Zoom range: Standard
magnification in the 7-90X, big objective in matching
aid, the magnification can be extended to between
3.5-180X. |
| Working distance:
standard working distance of 100mm, the maximum can
be configured as 30-165mm (optional 0.5X auxiliary
lens large), provide users with more room to work.
|
| Field Source:
various types of electric lighting system, built-in
fluorescent lamps, halogen lighting. |
76mm microscope host interface,
the column to the square, the base front-end distance
of 205mm, with bottom light.
Base Specifications: 252x200x24mm,
black and white with a 95x5mm platen.
Host Zoom range 0.7-4.5X, zoom ratio 1:6.5,45 º
trinocular observation head
10X high eye point wide field eyepieces, the line
field of 20mm, 30mm diameter head tube
|
|
| |
|
|
| |
HSTC-10605
, TURRET STEREO MICROSCOPE |
|
| |
A wide field of view, clear imaging, stereoscopic
| 45 ° inclined binocular observation,
360 ° rotation, locking the eyepiece, the left
eyepiece tube with diopter adjustment ± 5dp,
exit tube from the adjustment range of 55-75mm |
| 90 ° rotating lens, there
are three options: 1 × / 2 ×, 1 ×
/ 3 ×, 2 × / 4 ×. |
| Pillar type rack, bent arm frame
(with W-type were Emblem Mirror) |
| Input voltage 110V/60Hz or 220V/50Hz
|
| Each bubble wrap, placed inside
the cardboard box, two sets or four sets in one carton
|
| A variety of accessories available |
| Optional
Accessories: |
1. Eyepiece: WF5 ×, WF10
×, WF15 ×, WF20 ×
2. Additional lens: 0.5 × / 0.75 ×, 1.5
×, 2 ×
3. Dark field table
4. Jewelery clip
5. Black and white set the stage / frosted glass loading
platform (F95)
6. Fluorescent / Halogen / Ring Light
7. Wooden / aluminum alloy |
| Source
configuration: |
1. Transmittance and reflectance
12V 10W halogen lighting were
2. Transmittance and reflectance are using halogen
lighting 12V 10W, to the lower light
3. Transmittance fluorescent lighting 5W, 12V 10W
reflector halogen lighting
4. Transmittance fluorescent lighting 5W, reflective
lighting halogen 12V 10W, adjustable lighting,
light reflection
5. Transmittance and reflectance are using LED lighting
|
|
| |
|
|
| |
HSTC-10201
, UPRIGHT BIOLOGICAL MICROSCOPE |
|
| |
Original UCIS infinity corrected optical system
independent color, excellent cooling system of innovation
in scientific research, as the standard used in the BM series
biological microscope, microscope makes BM the same price
products in a more excellent performance highlights.
BM Series microscopes have a strong upgrade space, easy to
add accessories, you can easily bright field, dark field,
phase contrast, polarizing and other observations.
Objective Benefit from brilliant UCIS Infinity Achromatic
Optics Design, objectives own higher numerical apertures,
capture flat images over the entire field of view virtually
minimum curvature. Mildew resistant finish is applied to the
objectives.
Binocular Tube 30°inclined chain binocular
tube based on the concept of humanity design makes it easy
to operate, fatigue-free and 360°rotatable which satisfy
the need of teaching.
Trinocular Tube Easy to connect and work
with any kinds of camera and digital camera. Convenient to
obtain and process images, as well as files´ storage.
Condenser Easy to operate, more precise and optimized contrast.
NA1.25 Abbe condenser can meet the demand of different magnification
objectives. Condenser aperture diaphragm uses the same color
mark of objectives in order to get images of more resolution
and contrast.
Revolving Nosepiece 4-holes or 5-holes. Avoid the influence
of breathing. Easy to lay the sample and change objectives
while observing.
Co-axial Coarse and Fine Adjustment Ergonomically designed.
Scale precises to 0.001mm. Accurate, fatigue-free, steady
and reliable.
Illuminating system 6V/20W high brightness
halogen lamp provides clear and steady lighting. Large aperture
and aspheric surface lens makes it easy for the images to
get bright and even lighting. LED and battery system can
be flexiblly configurated according to the demand. Also
it is easy to change the bulb.
Dark Condenser Designed specially for dark field observation
to get more excellent effect.
|
| |
|
|
| |
HSTC-10301
, INVERTED BIOLOGICAL MICROSCOPE |
|
| |
Clear image quality, easy operation,
stable structure, powerful expansion of space, stability,
quality, BM10301 Inverted biological microscope is a powerful
guarantee your success
Excellent UCIS universal infinity independent-achromatic
optical system provide you with a high quality imaging.
| BM10301 inverted biological microscope
provides a flexible upgrade path to meet your applications
for observations of phase contrast, fluorescence,
polarization, digital and photographing easily, and
also can work with homothermal object stage, patch
clamp, assistant stage harmonious. |
| The adapter can connect various
kinds of camera and digital observe device. |
| 72mm ultra-long working distance
condenser provides enough space for culture dish.
|
| Humanization machine design can
make you work easily for a long time. |
| Excellent steady quality can
improve your work efficiency. |
The preliminary adjustment of
center can make you take the observation of phase
contrast comfortable.
Powerful upgrade space make multifunction easily be
got.
|
| |
In order to adequate to the demand
of front-line science and research’s development,
BM10301 adopts the design of modular and multi-interface,
which makes it easy to upgrade or add accessories.
It not only can improve your instrument’s efficiency,
but also can reduce your expenditure.
c series inverted biological microscope can be loaded
with v observation system, phase contrast observation
system, polarization observation system and photographing,
video-taping advices to meet your various kinds of
observation demand.
The interface included can connect patch clamp, thermostatic
cover, thermostatic object stage and other instrument
applied in modern hi-tech domain.
Excellent optical performance
universal infinity independent-achromatic optical
system, adopts the International advanced design idea.
Objective, eyepiece, illumination and spotlight system
can adjust aberration independently, which make the
imaging more clear.
Fluorescence observation
BM10301 can be configured with four kinds of fluorescence-induced
device, such as UV, V, B and G in order to change
the observation mode between fluorescence and bright
field. Fluorescence device is equipped with 100w mercury
lamp box. |
|
| |
|
|
| |
|
