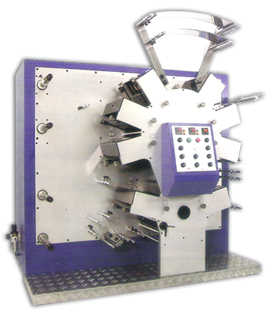

HSTC-RB421 Flexo Label Printing Machine |
|
|
The HSTC-RB421 is latest designed of rotates flexo label printing machine. It print eight colors and two-sides printing, quick change the printing colors. The Plate Cylinders can be adjust on run and separate the Anilox Roll from the machine. It uses the high accuracy Anilox Roll, ink is transferred directly from the Image Plates to the textile material as it passes through the Plate Cylinders. The Image Plates are fixed to Plate Cylinders of various the lengths by change the Plate Cylinders. If use the speciality ink may meet the hardest of wash resistant requirements and reach to bears the laundering and color is bright.
The HSTC-RB421 is stable and easy of operation label printing machine.
| SPECIFICATIONS: |
| Max. Print Width |
150mm |
| Max. Print Length |
300mm |
| Max. Speed |
60Mts/Min |
| Number of Color |
6 Front + 2 Reverse |
| Ceramic Anilox Rolls |
Standard |
| Dryer Plates |
Variable Temperature |
| Unwind Capacity |
450mm |
| Rewind Capacity |
450mm |
| Central drum |
Silicone Covered |
| Gearing |
1 mod |
| Double Rewind |
Optional |
| Synchronizer Unwind |
Optional |
| Electrical Supply |
AC380V 50/60Hz 3 Phase |
| Dimensions |
1850mm(L)x1220mm(W)x2000mm(H) |
| Air |
0.4~0.6 Mpa |
| Weight |
1350 Kg |
|
| |
|
|
| |
|
