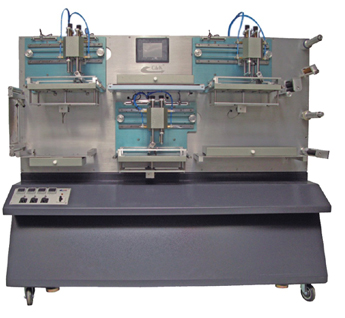

HSTC-SP321 3 COLOR FLAT SCREEN PRINTING MACHINE / 1 COLOR FLAT SCREEN PRINTING MACHINE |
|
|
HSTC-SP321 adopts computerized control with operation display. screen printing device with Rexroth (Germany) cylinder. the servo motor (Panasonic) and color sensor (Japan) allow repeat printing or reverse side print with perfect registration. It is ideal for security identification ink apply on woven labels as well.
| SPECIFICATIONS: |
| DIMENSIONS |
700mm(W)X1830mm(L)X1580mm(H) |
| WEIGHT |
310kgs |
| PRINTING |
2C+1C |
| PRINTING AREA |
130mmX190mm |
| POWER |
220VAC 50HZ/60HZ 2.5KW |
|
| |
|
|
| |

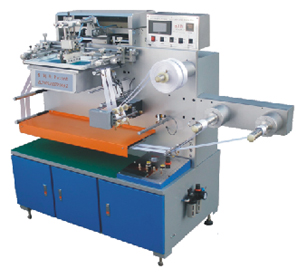

HSTC-SP116 |
|
|
HSTC-SP116 adopts computerized control with operation display. screen printing device with rexroth (germany) cylinder. the servo motor (Panasonic) and color sensor (Japan) allow repeat printing or reverse side print with perfect registration.It is ideal for security identification ink apply on woven labels as well. This Specially designed for twill tape, cotton tape printing. With conveyer belt system, It minimize the elasticity of printed material but the glue needs to be applied on the belt when printing & the glue will stick on the cutter of the Ultrasonic cutting machine.
| SPECIFICATIONS: |
| MAX. FEEDING WIDTH |
180mm |
| MAX. PRINTING WIDTH |
160mm |
| MAX. PRINTING LENGTH |
500mm |
| FRAME SIZE |
550X300mm |
| OVERALL POWER |
1.3KW/220 |
| MACHINE SIZE |
1900X770X1550mm |
| MAX. SPEED |
1800P/H |
|
| |
|
|
| |
|
